BINOCULAR : M3

BINOCULAR : M3

ModelM3, w/e

Line item No.4-01248-10

Federal stock No.
M4---------6650-670-2491

General

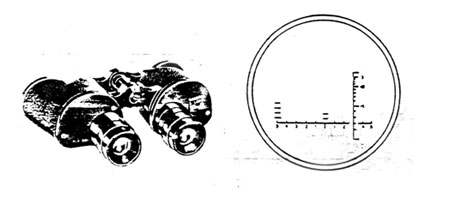

BINOCULAR:M3 is a substitute for BINOCULAR:M13A1. The binocular M3 contains a reticle in the left eyepiece, for approximate measurement of small angles. The horizontal scale is graduated 10-mil interval from 0 to 50 on both sides of the center of the field of view and marked 1. 2. 3. 4. 5. Above the horizontal scale are two series of graduations, each graduation being spaced 5 mils apart. The vertical scale(range)is graduated in hundreds of yards from 0 to 2,000. When the center vertical line of the mil scale on the reticle is alined with the target, deflection to the right or left of the target can be read on the mil scale. Binocular M3 is used for range estimation, determination of auxiliary aiming points, and for general observation purposes.

differences among models

data plate location
Date plate is located on the left cover plate.

Classification Standard B(OTCM 36841)

CHARACTERISTICS
Magnification.................................................. 6 power
Aperture........................................................... 30-mm
Field of view.................................................... 8 deg. 30 min
Exit pupil.......................................................... 0.197 in.
“F” number of objective................................ F/4.4
Reticle horizontal scale................................. 50-0-50 mils

Reticle range scale........................................ 0 to 2,000 yd
Filter.................................................................. M1
