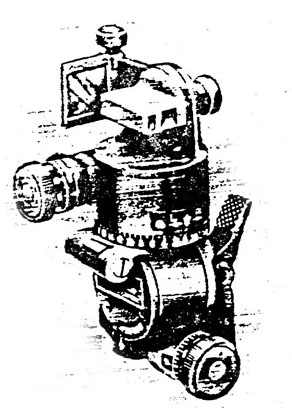

SIGHT:M6

SIGHTM6

ModelM6

Federal stock No.
M1---------1290-757-8420

General
SIGHT, M6 has an adjustment mirror for reciprocal laying, and a deflection scale to permit greater traverse than sight M4. The deflection scale can be disengaged by pushing outward on the micrometer knob. The cross level is on the mortar mount yoke and is not part of the sight. In all other respects, the sight is similar to the sight M4 and is used in the same manner.

differences among models

data plate location
The identification is located directly below the cross level.

Classification Standard A(OTCM 36841)

CHARACTERISTICS
Length............................. 7 in.
Width............................... 41/2 in.
Height.............................. 41/2 in.
Weight............................. 61/2 lb
Limits of Operation:
Elevation..................... 40 to 90°
Depression................. 0 to 3200 mils right and left
