MOUNT, TELESCOPEM111T219

MOUNT, TELESCOPE:M111(T219)

ModelM111(T219)

Federal stock No.
M111T219---------1240-593-9976

General

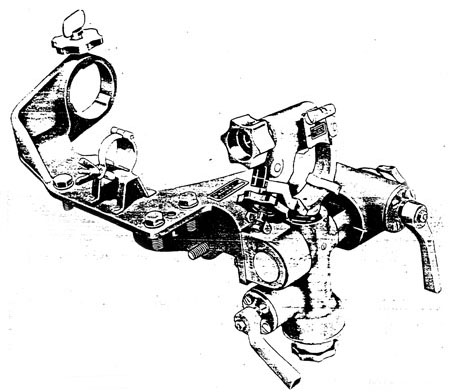

MOUNT, TELESCOPE:M111(T219)attaches to the 90-mm gun mount M88 on the 90-mm full track self-propelled gun M56(T101)and is used to support TELESCOPE:M104(T186)or M104C for sighting and ranging on targets. The telescope mount elevates and deflects with the weapon, maintaining a constant relative position between centerlines of the gun tube and the telescope. Two boresight knob assemblies are provided to enable making azimuth and elevation boresight adjustments. The mount supports the LIGHT, INSTRUMENT:M36 which illuminates the reticle patterns of the TELESCOPE:M104(T186)or M104C during night operation.

differences among models

data plate location
The identification plate is located on the top of the mount.

ClassificationStandard A(OTCM 37695

CHARACTERISTICS
Length............................. 193/4 in.
Width............................... 121/4 in.
Height.............................. 121/2 in.
Weight............................. .40 lb
