MOUNT, TELESCOPEM114T199

MOUNT, TELESCOPE:M114(T199)

ModelM114

Federal stock No.
M114---------1240-676-2176

General

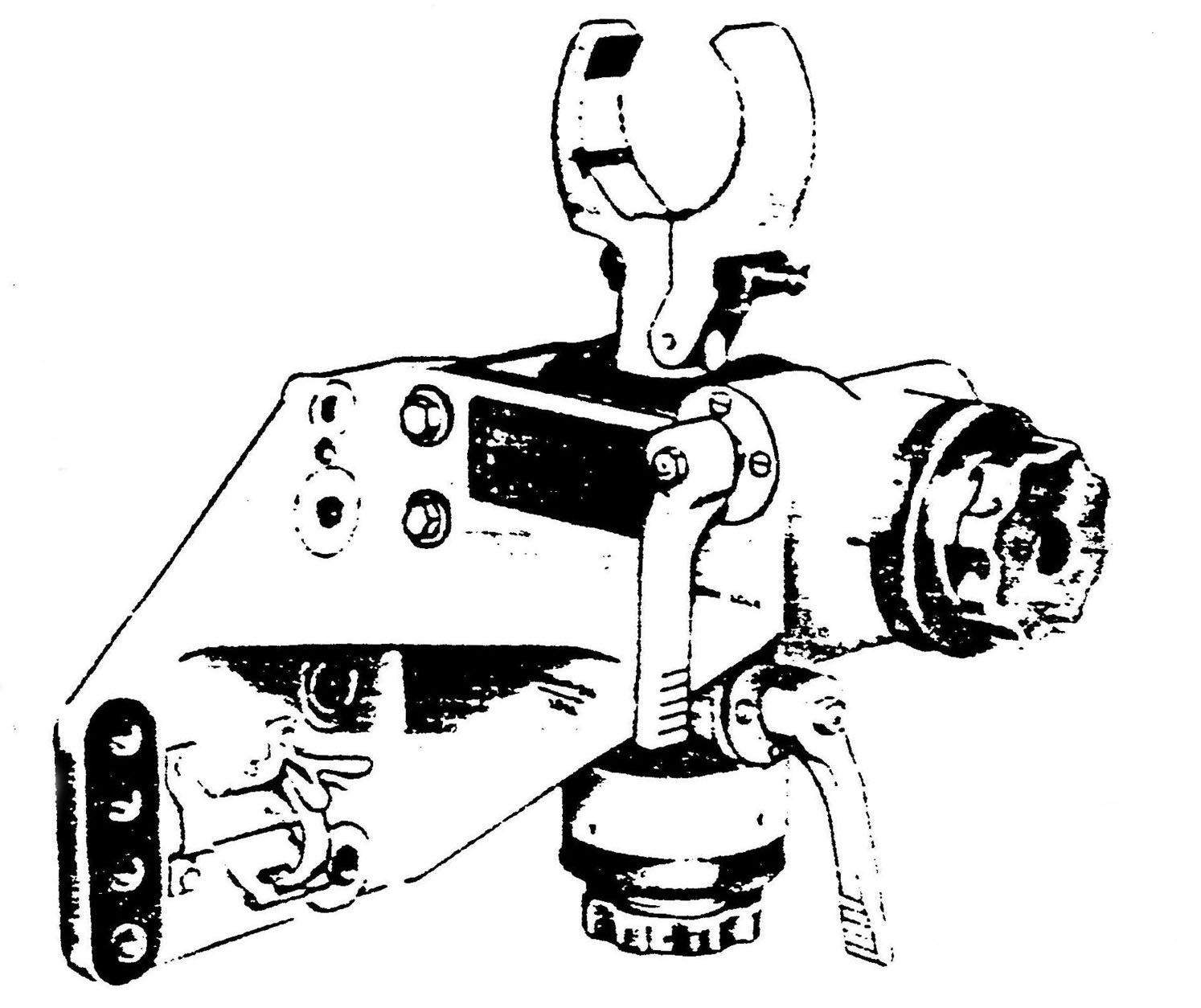

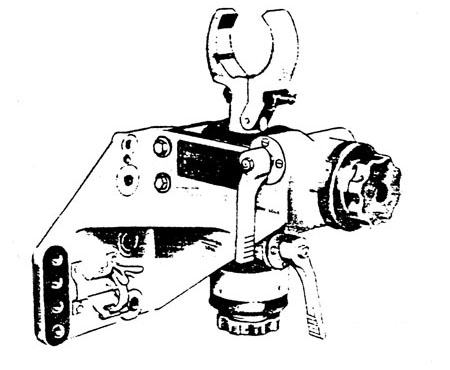

MOUNT, TELESCOPE:M114(T199), supports TELESCOPE:articulated, M105C for use as the secondary direct fire control system in TANK, COMBAT, FULL TRACKED:105-mm gun, M60. The mount consists of a base housing assembly, and adjustable slide assembly, and an adjustable holder assembly capable of vertical movement within the slide. Boresight knobs and scale dials for adjusting the telescope in deflection and elevation, and locking mechanisms for holding the adjustments constitute the operationg components of the mount.

differences among models

data plate location
The identification plate is located on the upper main bracket.

ClassificationStandard A

CHARACTERISTICS
Length............................. 103/4 in.
Width............................... 101/4 in.
Height.............................. 13 in.
Weight............................. .48 lb
Boresight knob scales-graduated in 0.1mils increments, numbered every mil.
Elevation..................... 0.5 to 5.5 mils
Depression................. 0.5 to 5.5 mils
