SIGHTM34, M34A1, M34A2, M34A2C

SIGHT:M34, M34A1, M34A2, M34A2C

SIGHT:M34, M34A1, M34A2, M34A2CModel

Federal stock No.
M34---------------1290-759-7854
M34A1-----------1290-764-7931
M34A2-----------1290-300-7989
M34A2C---------1290-783-5932

General

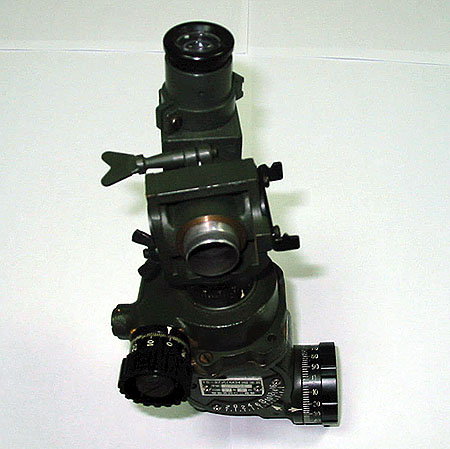

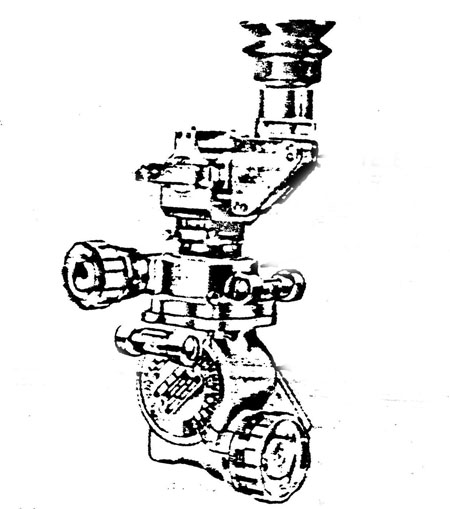

SIGHTUNIT:M34, M34A1, M34A2, and M34A2C is made up of two or more pieces of sighting equipment(generally consisiting of a telescope and mount which cannot be disassembled by using troops). Sightunits are used for pointing the weapon for indirect fire. Elevation angles are set on an elevation scale and micrometer on the mount. Azimuth angles are set on an azimuth scale and micrometer or on the adapter when using an elbow telescope. The adapter is provided with an azimuth worm throwout devicefor rapid approximate setting.
The M34, M34A1, or M34A2 is used with RIFLE, 75 MILLIMETER:M20 and T21E12:MORTAR, INFANTRY:4.2-INCH, M30:MORTAR, INFANTRY:81-mm, and MORTAR, SELF-PROPELLED, FULL-TRACKED:4.2-inch, M84. The sightunit M34A2C is used with LAUNCHER, ROCKET:318-mm, XM34 and LAUNCHER, ROCKET:115-mm, M91(T145).

differences among models
Each of the sight units is assembled from similar models of three basic units as listed below:

Sightunit----------- Telescope mount------------ Telescope adapter---------- Elbow telescope
M34----------------- M79----------------------------- M9------------------------------- M62
M34A1-------------- M79----------------------------- M9------------------------------- M62A1C
M34A2-------------- M79----------------------------- M9A1--------------------------- M62A1C
M34A2C----------- M79----------------------------- M9A1--------------------------- M62A1D

data plate location
Identification plates(nameplates)on all moedls are on the telescope mount below the longitudinal level.

Classification
M34 --------- Standard A(OTCM 36841)
M34A1 ----- Standard A(OTCM 36841)
M34A2 ----- Standard A(OTCM 36841)
M34A2C ---Standard A

CHARACTERISTICS
Length............................. 91/4 in.
Width............................... 33/4 in.
Height.............................. 41/2 in.
Weight............................. 51/4 lb
Limits of Operation:
Elevation..................... 1,600 mils(90°)
Depression................. 200 mils(11.25°)
Field of view............... 12°, 12 min
Azimuth....................... 6,400 mils(360°)
