SIGHT UNIT:M53 & M53A1

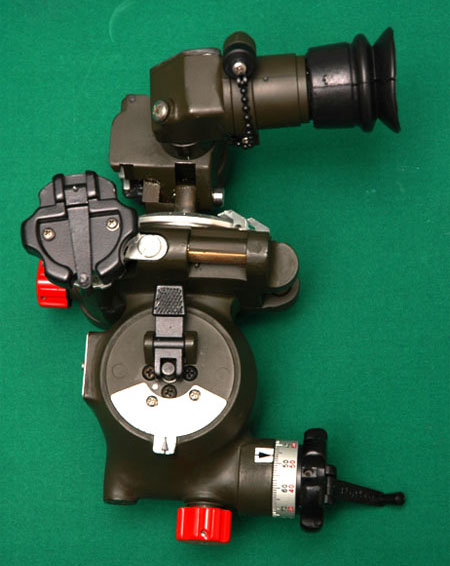

SIGHT:M53

  1. SCOPE :
    This specification covers a fire control instrument which is composed of Elbow Telescope: M109 and Telescope Mount : M128A1.
  2. APPLICABLE DOCUMENTS:
    The following documents, of the issue in effect on date of invitation for bids or request for proposal, form a part of this specification to the extent specified herein.

SPECIFICATIONS

Military

Fire Control Materiel:General
MIL-F-13926   Specification Governing the Manufacture and Inspection of
MIL-P-14232   Parts, Equipment and Tools for Army Materiel, Packaging and Packing of
MIL-I-45607   Inspection Equipment,Supply and Maintenance of
MIL-T-46324   Telescope, Elbow: M109
MIL-M-50380   Mount, Telescope: M128A1

STANDARDS

Military

MIL-STD-105   Sampling Procedures and Tables for Inspection by Attributes
MIL-STD-109   Quality Assurance Terms and Definitions

DRAWINGS

U.S. Army Frankford Arsenal

F8588780     Telescope, Elbow: M109
F10559698    Sightunit: M53A1
F10559699    Mount, Telescope: M128A1

PACKAGING DATA SHEET

10559698     Packaging of Sightunit: M53A1
