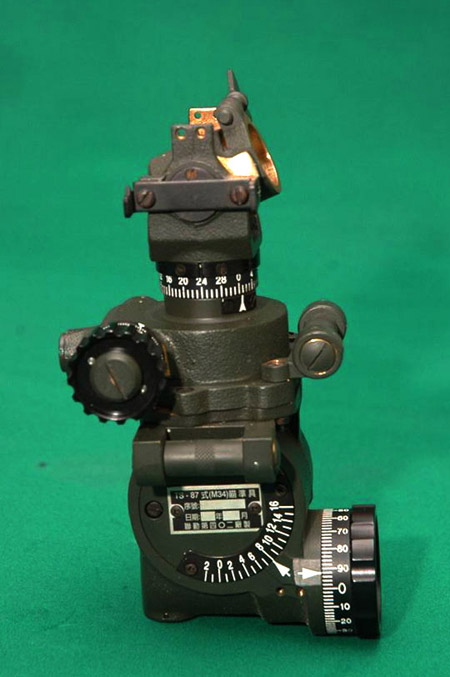

MOUNT, TELESCOPE: M79 (T148)

MOUNT, TELESCOPE: M79 (T148)

ModelM79(T148)
Federal stock No.1290-795-7745

General
MOUNT, TELESCOPE:M79(T148), as a component of SIGHT-UNIT:M34 or M34A1, is used with MORTAR, INFANTRY, 4.2-INCH:M30,  and RIFLE, 105 MILLIMETER:M27 or M27A1. As a component of SIGHTUNIT:M34A2, this mount is used with MORTAR, INFANTRY, 81 MILLIMETER:M29;with MORTAR, 4.2-INCH, SP full-tracked, M84; with LAUNCHER, ROCKET:multiple, 4.5-inch, M21:and with RIFLE, 75 MILLIMETER:M20. As a component of SIGHTUNIT:M34A2C, this mount is used with LAUNGHER, ROCKET:318-mm, XM34. The mount has an elevating mechanism, scale and micrometer for measuring and registering angles. A cross level is provided for indicating when the mount is cross leveled, and a longitudinal level indicates when the weapon is elevated to the height indicated on the elevation scale, LIGHT, INSTRUMENT:M42, is used with this mount for night operation.

differences among models

data plate location
the identification plate(nameplate) is on the left side of the mount.

Classification Limited standard(OTCM 37284)

CHARACTERISTICS
Length.............................
Width...............................
Height..............................
Weight.............................
Elevation scale................ -200 to  +600 mil
